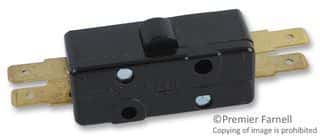

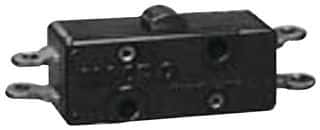

DPDT snap action switch featuring quick connect termination and a plunger actuator. Rated for 10A at 250VAC (372.85VA), with a 125V AC rating also specified. Operating force is 3.61N, and the switch offers a mechanical life of 7,000,000 cycles. Constructed with a plastic actuator and silver contacts, it supports screw mounting and operates within a temperature range of -55°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell 1TB25-D8 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell 1TB25-D8 technical specifications.
| Actuator Material | Plastic |
| Contact Current Rating | 10A |
| Contact Material | Silver |
| Current Rating | 10A |
| Depth | 12.7mm |
| Length | 52.07mm |
| Material | Plastic |
| Max Current Rating | 10A |
| Max Operating Temperature | 125°C |
| Mechanical Life | 7000000Cycles |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Panel, Screw |
| Operating Force | 361N |
| Orientation | Straight |
| Package Quantity | 5 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | TB |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT, DPDT |
| Voltage Rating (AC) | 125V |
| Weight | 907g |
| RoHS | Compliant |
