SPDT toggle switch featuring a locking lever actuator with a white finish and 30mm length. Rated for 15A at 277VAC and 250VDC, with a 745.7VA rating. This non-illuminated, panel-mount switch utilizes screw terminals and offers a straight orientation. Operating temperature range is -65°C to 71°C, with silver-cadmium contacts and bushing mounting.
Current Rating15A
MountingBushing
Quick Jump:
Technical Specifications
Honeywell 1TL150-3D technical specifications.
General
| Actuator Color | White |
| Actuator Length | 30mm |
| Actuator Type | LOCKING LEVER |
| Contact Material | Silver, Cadmium |
| Contact Plating | Silver, Cadmium |
| Current Rating | 15A |
| Illumination Type | Non-Illuminated |
| Max Operating Temperature | 71°C |
| Min Operating Temperature | -65°C |
| Max Voltage Rating (AC) | 277V |
| Max Voltage Rating (DC) | 250V |
| Mount | Bushing |
| Number of Positions | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | Environment Proof |
| RoHS Compliant | Yes |
| Series | TL |
| Switch Function | On-On |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 250V |
| Weight | 36.29g |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 1TL150-3D Datasheet
Download the complete datasheet for Honeywell 1TL150-3D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

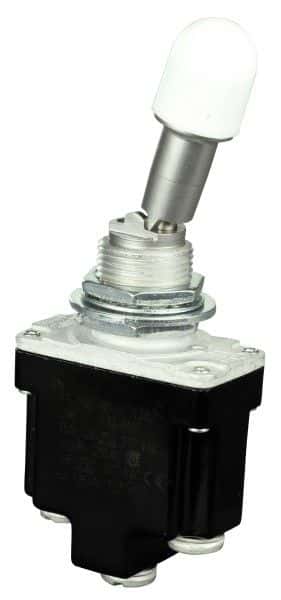

Product Images
