Illuminated SPDT rocker switch with a momentary-off-momentary function. Features a clear plastic rocker actuator and screw terminals for 10A current at 277VAC or 250VDC. Operating temperature range is -54°C to 71°C. Panel mountable with a straight orientation.
Current Rating10A
MountingPanel, Flush
Quick Jump:
Technical Specifications
Honeywell 1TP12-7 technical specifications.
General
Actuator Color
Clear
Actuator Material
Plastic
Actuator Type
Rocker
Contact Material
Silver, Cadmium
Contact Plating
Silver, Cadmium
Current Rating
10A
Depth
22.1mm
Illumination Type
Illuminated
Length
55.1mm
Max Current Rating
10A
Max Operating Temperature
71°C
Min Operating Temperature
-54°C
Max Voltage Rating (AC)
277V
Max Voltage Rating (DC)
250V
Mount
Panel, Flush
Orientation
Straight
Package Quantity
1
Packaging
Bulk
RoHS Compliant
Yes
Series
TP
Switch Function
Mom-Off-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
Weight
45.36g
Compliance
RoHS
Compliant
Datasheet
Honeywell 1TP12-7 Datasheet
Download the complete datasheet for Honeywell 1TP12-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

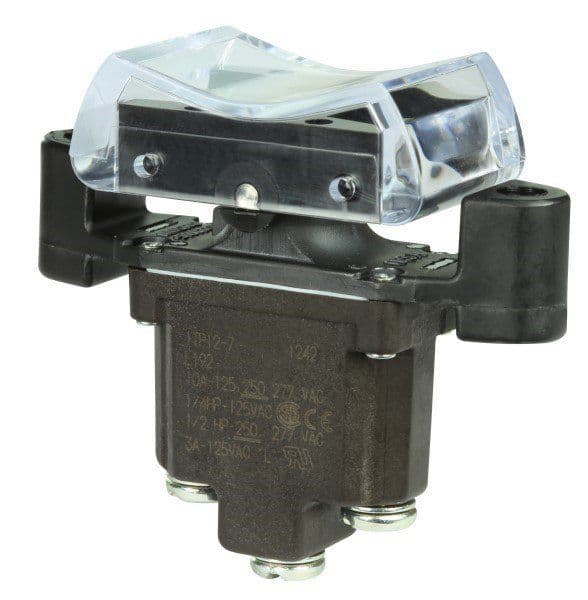

Product Images
