SPDT Latched Toggle Switch, panel mount with threaded bushing. Features a standard round actuator with 10.67mm length. Rated for 15A at 125V AC and 30V DC, with silver contacts and silver plating. Operates across a temperature range of -65°C to 71°C. RoHS compliant with solder termination.
Current Rating15A
MountingBushing
Quick Jump:
Technical Specifications
Honeywell 1TW1-3 technical specifications.
General
| Actuator Length | 10.67mm |
| Actuator Type | Standard Round |
| Approvals | UL |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 15A |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Contains Lead |
| Max Operating Temperature | 71°C |
| Min Operating Temperature | -65°C |
| Max Voltage Rating (DC) | 30V |
| Mount | Bushing |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | TW |
| Switch Function | On-On |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 1TW1-3 Datasheet
Download the complete datasheet for Honeywell 1TW1-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

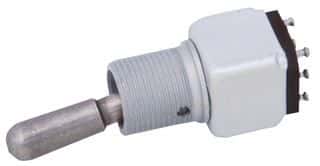

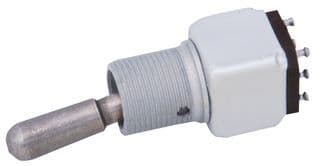

Product Images
