Honeywell
1XE3
Snap Acting/Limit Switch, SPST, Momentary, 7A, 28VDC, 1.37mm, Wire Terminal, Steel Plunger Actuator, Panel Mount,
Current Rating7A
MountingPanel, Screw, Wire
Quick Jump:
Technical Specifications
Honeywell 1XE3 technical specifications.
General
Actuator Material
Steel
Contact Material
Silver
Current Rating
7A
Depth
8.03mm
Length
15.65mm
Max Current Rating
7A
Max Voltage Rating (AC)
115V
Max Voltage Rating (DC)
28V
Mount
Panel, Screw, Wire
Operating Force
4.73N
Orientation
Straight
RoHS Compliant
Yes
Termination
Wire Leads
Throw Configuration
SPST
DC Rated Voltage
28V
Weight
14.46g
Compliance
RoHS
Compliant
Datasheet
Honeywell 1XE3 Datasheet
Download the complete datasheet for Honeywell 1XE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

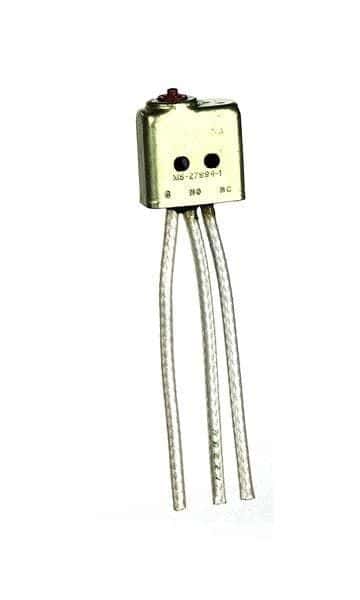

Product Images
