Surface mount piezoresistive pressure sensor with a 0 to 5 PSI operating range and 20 PSI maximum pressure. Features a Wheatstone bridge analog output, delivering 0-115mV with 0.2% accuracy and linearity. Operates from -40°C to 85°C with a 10V DC supply voltage and 5.5kΩ input resistance. This RoHS compliant component offers a 1ms response time and gull wing termination.
PackageSMD/SMT
Voltage Rating10V
MountingSurface Mount
Quick Jump:
Technical Specifications
Honeywell 24PC05SMT technical specifications.
General
Accuracy
0.2%
Package/Case
SMD/SMT
Input Resistance
5.5kR
Linearity
0.2%
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Pressure
20PSI
Max Supply Voltage (DC)
12V
Max Supply Voltage
12V
Mount
Surface Mount
Operating Pressure
5PSI
Operating Supply Voltage
10V
Output
ANALOG
Output Type
Wheatstone Bridge, Analog
Output Voltage
115mV
Package Quantity
70
Port Style
Barbless
Pressure Type
Differential
Reach SVHC Compliant
No
Response Time
1ms
RoHS Compliant
Yes
Series
24PC SMT
Termination
Gull Wing
Voltage Rating
10V
DC Rated Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Honeywell 24PC05SMT Datasheet
Download the complete datasheet for Honeywell 24PC05SMT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

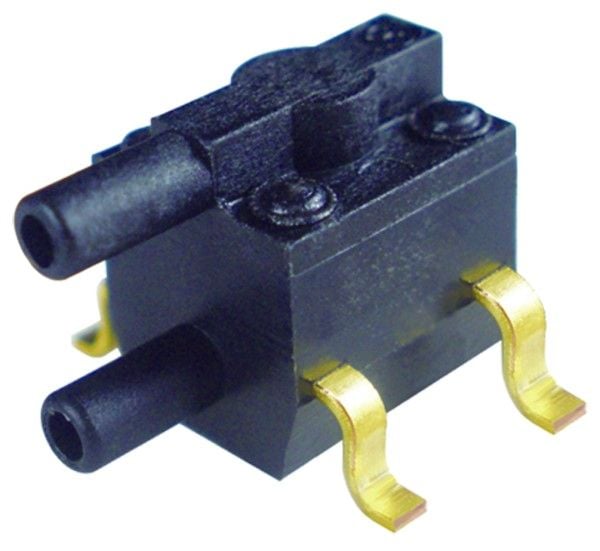

Product Images
