Differential pressure sensor with analog Wheatstone bridge output. Features 15 PSI operating pressure, 45 PSI maximum pressure, and 0.3% accuracy and linearity. Operates from -40°C to 85°C with a 10V operating supply voltage. Packaged in SMD/SMT with gull wing termination for surface mount PCB applications.
PackageSMD/SMT
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Honeywell 24PC15SMT technical specifications.
General
| Accuracy | 0.3% |
| Package/Case | SMD/SMT |
| Input Resistance | 5.5kR |
| Linearity | 0.3% |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Pressure | 45PSI |
| Max Supply Voltage | 12V |
| Mount | Surface Mount, PCB |
| Operating Pressure | 15PSI |
| Operating Supply Voltage | 10V |
| Output | ANALOG |
| Output Type | Wheatstone Bridge, Analog |
| Output Voltage | 225mV |
| Package Quantity | 70 |
| Port Style | Barbless |
| Pressure Type | Differential |
| Primary Type | PRESSURE SENSOR |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Series | 24PC SMT |
| Termination | Gull Wing |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 24PC15SMT Datasheet
Download the complete datasheet for Honeywell 24PC15SMT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

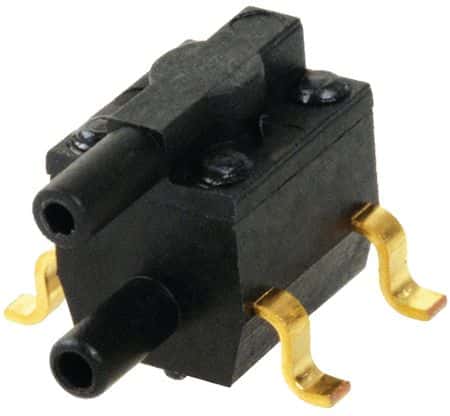

Product Images
