Differential pressure sensor with a 0 to 1 PSI operating range and 1% accuracy. Features a Wheatstone bridge analog output, 45mV output voltage, and 1ms response time. Housed in a lead-free SIP package with a 2.5mm lead pitch, this through-hole mount component operates from -40°C to 85°C with a 10V supply voltage.
PackageSIP
Current2mA
Voltage Rating10V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Honeywell 24PCAFA6D technical specifications.
General
Accuracy
1%
Package/Case
SIP
Input Impedance
5kR
Input Resistance
6kR
Lead Free
Lead Free
Lead Pitch
2.5mm
Linearity
1%
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Pressure
20PSI
Max Supply Voltage
12V
Mount
Through Hole, PCB
Operating Pressure
1PSI
Operating Supply Voltage
10V
Output
ANALOG
Output Type
Wheatstone Bridge, Analog
Output Voltage
45mV
Package Quantity
5
Port Style
Barbless
Pressure Type
Differential
Primary Type
PRESSURE SENSOR
Reach SVHC Compliant
No
Response Time
1ms
RoHS Compliant
Yes
Series
24PC
Supply Current
2mA
Termination
PC Pin
Voltage Rating
10V
DC Rated Voltage
10V
Weight
2g
Width
12.7mm
Compliance
RoHS
Compliant
Datasheet
Honeywell 24PCAFA6D Datasheet
Download the complete datasheet for Honeywell 24PCAFA6D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

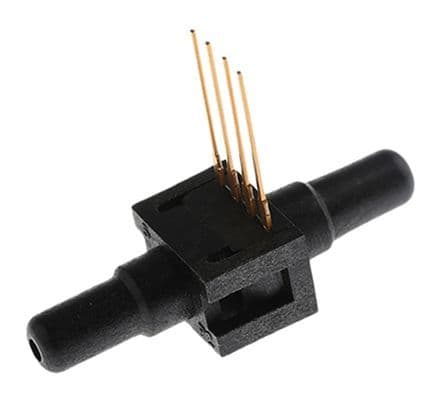

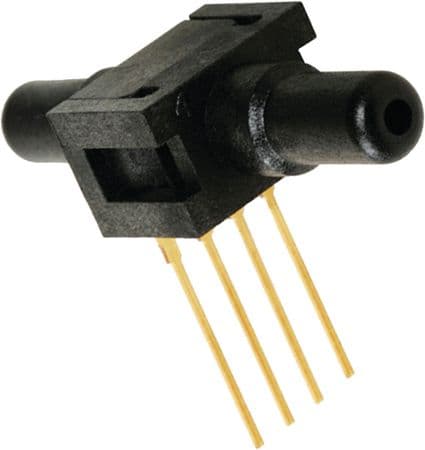

Product Images
