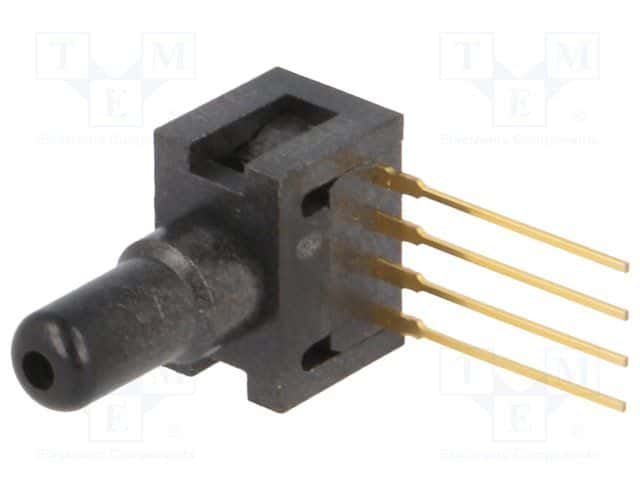

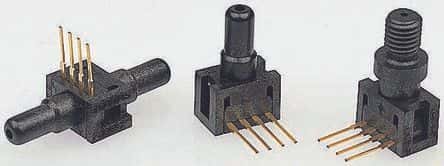

Board mount pressure sensor with a 0psi to 15psi operating range and 45PSI maximum pressure. Features 1% accuracy and linearity, a Wheatstone bridge analog output, and a 1ms response time. Operates with a 10V supply voltage and has a 5kR input impedance and 6kR input resistance. Through-hole mounting with a 2.5mm lead pitch on a SIP package.
PackageSIP
Current2mA
Voltage Rating10V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Honeywell 24PCCFA6G technical specifications.
General
Accuracy
1%
Package/Case
SIP
Input Impedance
5kR
Input Resistance
6kR
Lead Free
Lead Free
Lead Pitch
2.5mm
Linearity
1%
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Pressure
45PSI
Max Supply Voltage (DC)
12V
Max Supply Voltage
12V
Mount
Through Hole, PCB
Operating Pressure
15PSI
Operating Supply Voltage
10V
Output Type
Wheatstone Bridge, Analog
Output Voltage
285mV
Package Quantity
5
Port Style
Barbless
Pressure Type
Compound
Primary Type
PRESSURE SENSOR
Reach SVHC Compliant
No
Response Time
1ms
RoHS Compliant
Yes
Series
24PC
Supply Current
2mA
Termination
PC Pin
Voltage Rating
10V
DC Rated Voltage
10V
Weight
2g
Width
12.7mm
Compliance
RoHS
Compliant
Datasheet
Honeywell 24PCCFA6G Datasheet
Download the complete datasheet for Honeywell 24PCCFA6G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
