Board mount pressure sensor with a 0 psi to 250 psi operating pressure range and 500 PSI maximum pressure. Features 1% accuracy and linearity, with a 1 ms response time. Operates from -40°C to 85°C and requires a 10V to 12V supply voltage. Output is analog, utilizing a Wheatstone bridge configuration. Housed in a SIP package with PC pin termination and a 2.5mm lead pitch.
PackageSIP
Current2mA
MountingScrew
Quick Jump:
Technical Specifications
Honeywell 24PCGFM6G technical specifications.
General
| Accuracy | 1% |
| Package/Case | SIP |
| Input Impedance | 5kR |
| Input Resistance | 6kR |
| Lead Pitch | 2.5mm |
| Linearity | 1% |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Pressure | 500PSI |
| Max Supply Voltage | 12V |
| Min Supply Voltage | 10V |
| Mount | Screw |
| Operating Pressure | 250PSI |
| Output | ANALOG |
| Output Type | Wheatstone Bridge, Analog |
| Output Voltage | 280mV |
| Package Quantity | 5 |
| Port Style | Threaded |
| Pressure Type | Compound |
| Primary Type | PRESSURE SENSOR |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Series | 24PC |
| Supply Current | 2mA |
| Termination | PC Pin |
| DC Rated Voltage | 10V |
| Weight | 2g |
| Width | 12.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 24PCGFM6G Datasheet
Download the complete datasheet for Honeywell 24PCGFM6G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

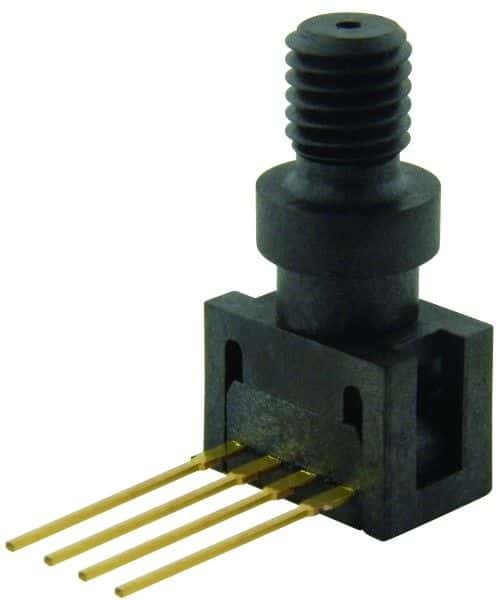

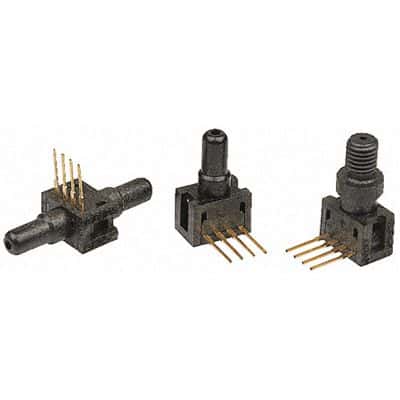

Product Images
