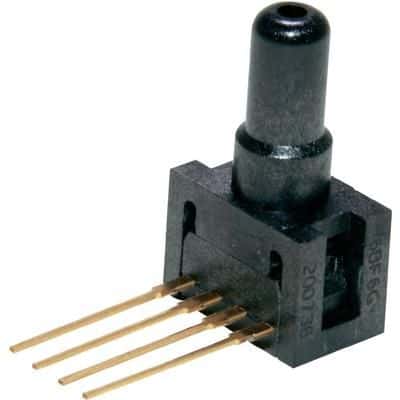

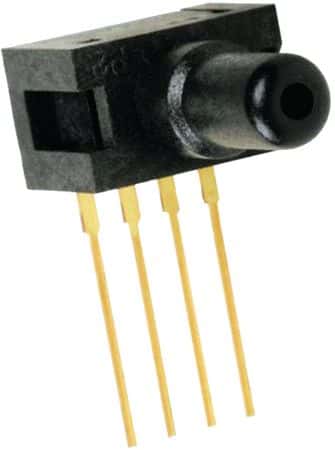

Board mount pressure sensor with a 0psi to 5psi operating pressure range and 0psi to 20PSI maximum pressure. Features a Wheatstone bridge analog output, providing 0V to 0.05V output voltage. Offers 0.5% accuracy and 0.5% linearity across an operating temperature range of -40°C to 85°C. Through-hole mounting with PC pin termination and a 1ms response time. This RoHS compliant component operates with a 10V DC supply voltage.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell 26PCBFA6G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell 26PCBFA6G technical specifications.
| Accuracy | 0.5% |
| Height | 7.87mm |
| Input Impedance | 7.5kR |
| Input Resistance | 11.5kR |
| Lead Free | Lead Free |
| Length | 21.84mm |
| Linearity | 0.5% |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Pressure | 20PSI |
| Max Supply Voltage (DC) | 16V |
| Max Supply Voltage | 16V |
| Mount | Through Hole |
| Operating Pressure | 5PSI |
| Operating Supply Voltage | 10V |
| Output | ANALOG |
| Output Type | Wheatstone Bridge, Analog |
| Output Voltage | 50mV |
| Package Quantity | 5 |
| Port Style | Barbless |
| Pressure Type | Compound |
| Primary Type | PRESSURE SENSOR |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Series | 26PC |
| Termination | PC Pin |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Weight | 2g |
| Width | 12.7mm |
| RoHS | Compliant |
