Board mount pressure sensor with a 0 to 15 psi operating pressure range and a 45 psi maximum pressure rating. Features a 0V to 0.1V analog output, specifically a Wheatstone bridge, with a 100mV output voltage. Offers 0.5% accuracy and linearity, operating from -40°C to 85°C. Packaged in a 4-pin SIP for through-hole PCB mounting, with a 1ms response time.
PackageSIP
Voltage Rating10V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Honeywell 26PCCFA6G technical specifications.
General
| Accuracy | 0.5% |
| Package/Case | SIP |
| Height | 7.87mm |
| Input Impedance | 7.5kR |
| Input Resistance | 11.5kR |
| Lead Free | Lead Free |
| Length | 21.84mm |
| Linearity | 0.5% |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Pressure | 45PSI |
| Max Supply Voltage | 16V |
| Mount | Through Hole, PCB |
| Operating Pressure | 15PSI |
| Operating Supply Voltage | 10V |
| Output | ANALOG |
| Output Type | Wheatstone Bridge, Analog |
| Output Voltage | 100mV |
| Package Quantity | 5 |
| Port Style | Barbless |
| Pressure Type | Compound |
| Primary Type | PRESSURE SENSOR |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Series | 26PC |
| Termination | PC Pin |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Weight | 2g |
| Width | 12.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 26PCCFA6G Datasheet
Download the complete datasheet for Honeywell 26PCCFA6G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

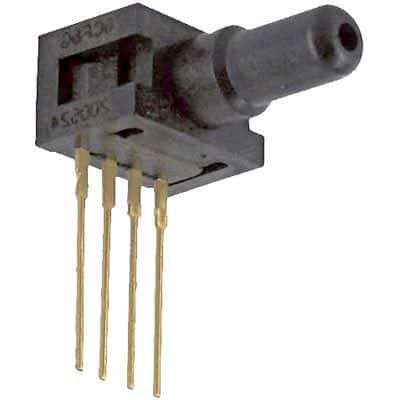

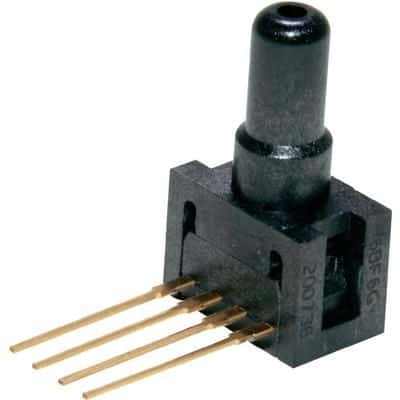

Product Images
