HONEYWELL

26PCCFG6G

Datasheet

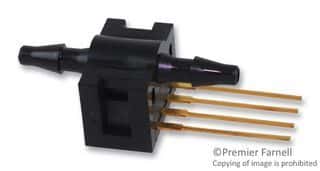

Compound Pressure Sensor, 45PSI, 0.5% Acc, Wheatstone Bridge, SIP

Honeywell

26PCCFG6G

Name: 26PCCFG6G Honeywell
Brand: Honeywell
SKU: 26PCCFG6G

Compound Pressure Sensor, 45PSI, 0.5% Acc, Wheatstone Bridge, SIP

This piezoresistive pressure sensor offers 0.5% accuracy and linearity, operating within a -40°C to 85°C temperature range. Featuring a Wheatstone bridge analog output, it handles a maximum pressure of 45 PSI and an operating pressure of 15 PSI. The sensor is housed in a SIP package with through-hole mounting and a barbed port style, designed for a 10V operating supply voltage up to a maximum of 16V. Its compact dimensions include a 7.9mm height, 12.5mm length, and 21.8mm width, with a 1ms response time.

PackageSIP

Voltage Rating16V

MountingThrough Hole

Quick Jump:

Technical Specifications

Honeywell 26PCCFG6G technical specifications.

General

Accuracy	0.5%
Package/Case	SIP
Height	7.9mm
Input Resistance	11.5kR
Length	12.5mm
Linearity	0.5%
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Pressure	45PSI
Max Supply Voltage	16V
Mount	Through Hole
Operating Pressure	15PSI
Operating Supply Voltage	10V
Output Type	Wheatstone Bridge, Analog
Package Quantity	5
Port Style	Barbed
Pressure Type	Compound
Reach SVHC Compliant	No
Response Time	1ms
RoHS Compliant	Yes
Series	26PC
Termination	PC Pin
Voltage Rating	16V
DC Rated Voltage	16V
Weight	2g
Width	21.8mm
