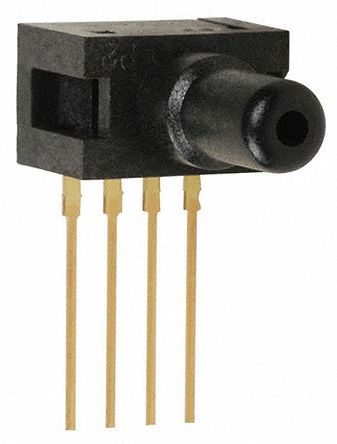

Analog pressure sensor with a Wheatstone bridge output, offering 0.2% accuracy and linearity across a 30 PSI operating pressure range. Features a 11.5 kΩ input resistance and a 100 mV output voltage. Operates from -40°C to 85°C with a maximum supply voltage of 16V DC. Designed for through-hole mounting with PC pin termination and a barbless port style.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell 26PCDFA6G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell 26PCDFA6G technical specifications.
| Accuracy | 0.2% |
| Input Resistance | 11.5kR |
| Lead Free | Lead Free |
| Linearity | 0.2% |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Pressure | 60PSI |
| Max Supply Voltage (DC) | 16V |
| Max Supply Voltage | 16V |
| Mount | Through Hole |
| Operating Pressure | 30PSI |
| Operating Supply Voltage | 10V |
| Output | ANALOG |
| Output Type | Wheatstone Bridge, Analog |
| Output Voltage | 100mV |
| Package Quantity | 5 |
| Port Style | Barbless |
| Pressure Type | Compound |
| Primary Type | PRESSURE SENSOR |
| Reach SVHC Compliant | No |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Series | 26PC |
| Termination | PC Pin |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Weight | 2g |
| RoHS | Compliant |
