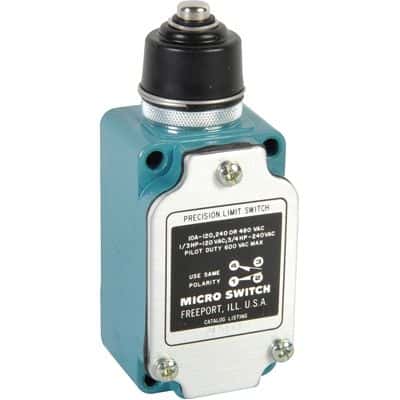

Snap acting/limit switch featuring a steel plunger actuator and SPDT momentary contact configuration. Rated for 10A at 480V AC, this panel mount switch offers a pretravel of 165mm and overtravel of 556mm with an operating force of 10N. Designed for chassis or panel mounting with screw terminals, it operates within a temperature range of -29°C to 71°C and boasts IP67, waterproof, and dust-tight ratings.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell 2LS111 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | TOP PLUNGER |
| Contact Type | Snap Action |
| Current Rating | 10A |
| Depth | 40.64mm |
| Height | 98.93mm |
| Length | 39.9mm |
| Max Operating Temperature | 71°C |
| Min Operating Temperature | -29°C |
| Max Voltage Rating (AC) | 480V |
| Mount | Chassis Mount, Panel, Screw |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Force | 10N |
| Operating Position | 1.33inch |
| Orientation | Straight |
| Overtravel | 556mm |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pretravel | 165mm |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LS |
| Switch Function | On-Mom |
| Termination | Conduit |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 480V |
| Width | 28.7mm |
| RoHS | Compliant |
