DPDT toggle switch featuring a standard round lever with a 17.02mm actuator length and screw termination. Rated for 20A at 277VAC and 250VDC, with an AC voltage rating of 125V and a maximum current rating of 15A. This non-illuminated, panel-mount switch offers a straight orientation and operates within a temperature range of -40°C to 71°C. Constructed with silver, cadmium contacts, it boasts IP67, waterproof, and dust-tight ratings.
Current Rating15A
MountingBushing
Quick Jump:
Technical Specifications
Honeywell 2NT1-3 technical specifications.
General
| Actuator Length | 17.02mm |
| Actuator Type | Standard Round |
| Contact Current Rating | 20A |
| Contact Material | Silver, Cadmium |
| Current Rating | 15A |
| Depth | 22.6mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 33.4mm |
| Max Current Rating | 20A |
| Max Operating Temperature | 71°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 277V |
| Max Voltage Rating (DC) | 250V |
| Mount | Bushing |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | NT |
| Switch Function | On-On |
| Termination | Screw |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 2NT1-3 Datasheet
Download the complete datasheet for Honeywell 2NT1-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

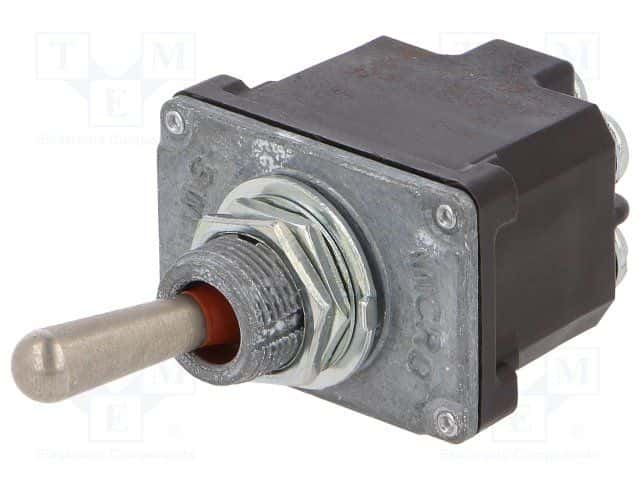

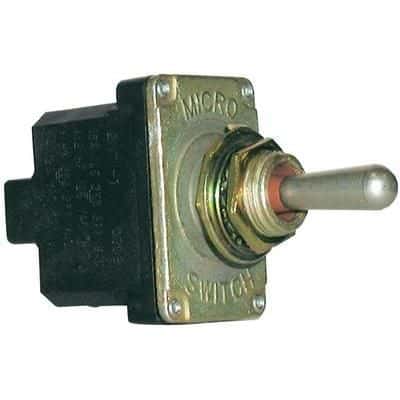

Product Images
