DPDT toggle switch featuring a 3-position (ON-OFF-ON) momentary function. Rated for 18A at 277VAC and 250VDC, with an additional AC rating of 125V. Equipped with a standard round lever measuring 17.02mm and screw terminals for panel mounting with threads. Offers IP67, waterproof, and dust-tight protection, operating within a temperature range of -40°C to 71°C.
MountingBushing
Quick Jump:
Technical Specifications
Honeywell 2NT1-7 technical specifications.
General
| Actuator Length | 17.02mm |
| Actuator Type | Standard Round |
| Contact Current Rating | 18A |
| Contact Material | Silver, Cadmium |
| Depth | 22.6mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 33.4mm |
| Max Current Rating | 18A |
| Max Operating Temperature | 71°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 277V |
| Max Voltage Rating (DC) | 250V |
| Mount | Bushing |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Orientation | Straight |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | NT |
| Switch Function | Mom-Off-Mom |
| Termination | Screw |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 2NT1-7 Datasheet
Download the complete datasheet for Honeywell 2NT1-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

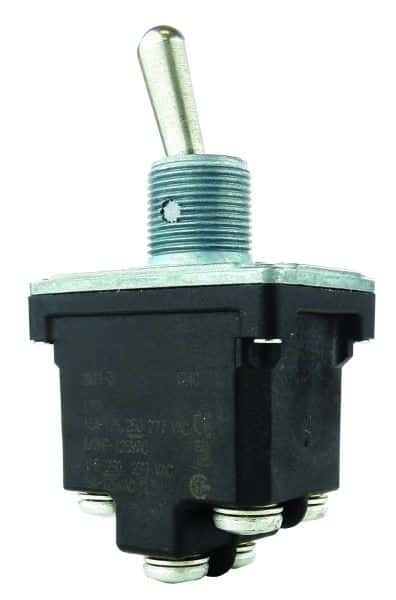

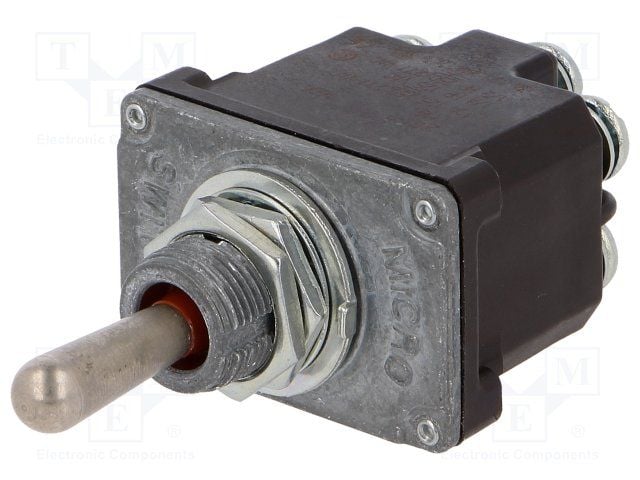

Product Images
