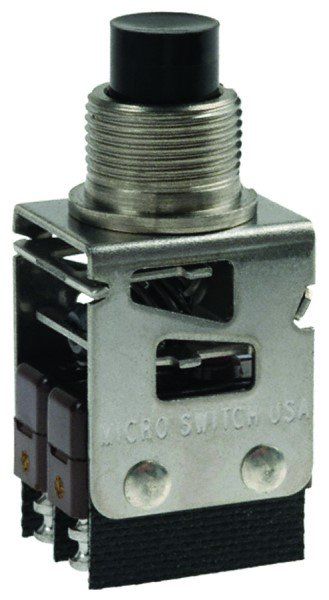

Illuminated & Non-Illuminated Pushbutton Switch, SPDT, Momentary, 5A, 30VDC, Panel Mount-threaded. Features a black actuator with 5.1mm length, 5A contact current rating, and 50,000 cycle electrical and mechanical life. Operates within a temperature range of -55°C to 85°C, with a maximum AC voltage rating of 250V and DC voltage rating of 30V. Straight orientation with solder termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell 2PB11-T2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Color | Black |
| Actuator Length | 5.1mm |
| Contact Current Rating | 5A |
| Current Rating | 5A |
| Electrical Life | 50000Cycles |
| Lead Free | Contains Lead |
| Length | 19.8mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 85°C |
| Mechanical Life | 50000Cycles |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mount | Panel |
| Orientation | Straight |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | PB |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT, DPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 30V |
| RoHS | Not Compliant |
