DPST toggle switch featuring a 20A current rating and 277VAC/250VDC voltage rating. Non-illuminated with a standard round, nickel-plated lever measuring 17.27mm. Panel mount design with threaded bushing and screw termination. Contact material includes silver, cadmium, and gold, with silver and cadmium plating. Operating temperature range from -65°C to 71°C, RoHS compliant, and UL, CSA, CE approved.
Current Rating20A
MountingBushing
Quick Jump:
Technical Specifications
Honeywell 2TL1-2 technical specifications.
General
Actuator Length
17.27mm
Actuator Material
NICKEL PLATED
Actuator Type
Standard Round
Approvals
UL, CSA, CE
Contact Current Rating
15A
Contact Material
Silver, Cadmium, Gold
Contact Plating
Silver, Cadmium
Current Rating
20A
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Max Operating Temperature
71°C
Min Operating Temperature
-65°C
Max Voltage Rating (DC)
250V
Mount
Bushing
Number of Poles
2
Number of Positions
2
Orientation
Straight
Packaging
Bulk
Ratings
Environment Sealed
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
TL
Switch Function
On-Off
Termination
Screw
Throw Configuration
DPST
Voltage Rating (AC)
125V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Honeywell 2TL1-2 Datasheet
Download the complete datasheet for Honeywell 2TL1-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

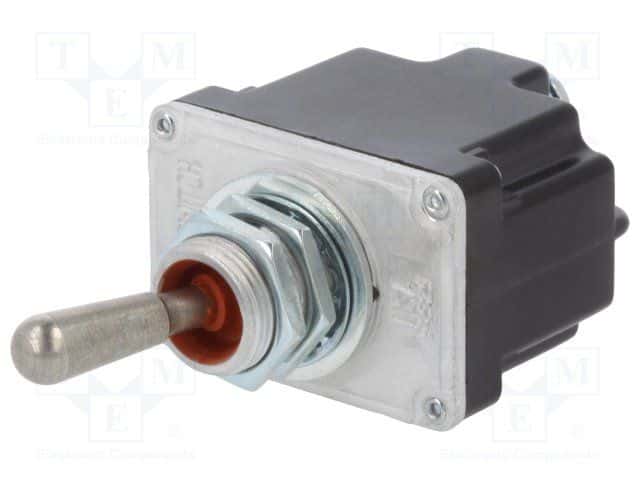

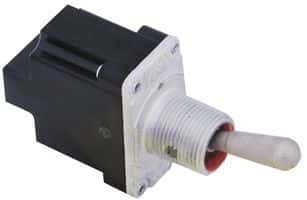

Product Images
