DPDT toggle switch featuring a locking lever actuator with a nickel-plated finish, designed for panel mounting with threaded bushings. Offers a 20A current rating at 277VAC and 250VDC, with a 3-position ON-ON function. Contact materials include silver, cadmium, and gold, with silver-cadmium plating. Operating temperature range spans -65°C to 71°C. Approvals include UL, CSA, and CE, with RoHS compliance.
Current Rating20A
MountingBushing
Quick Jump:
Technical Specifications
Honeywell 2TL1-3D technical specifications.
General
Actuator Length
26.67mm
Actuator Material
NICKEL PLATED
Actuator Type
LOCKING LEVER
Approvals
UL, CSA, CE
Contact Current Rating
15A
Contact Material
Silver, Cadmium, Gold
Contact Plating
Silver, Cadmium
Current Rating
20A
Depth
22.6mm
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Length
33.4mm
Max Current Rating
20A
Max Operating Temperature
71°C
Min Operating Temperature
-65°C
Max Voltage Rating (AC)
277V
Max Voltage Rating (DC)
250V
Mount
Bushing
Number of Poles
2
Number of Positions
3
Orientation
Straight
Packaging
Bulk
Ratings
Environment Sealed
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
TL
Switch Function
On-On
Termination
Screw
Throw Configuration
DPDT
Voltage Rating (AC)
125V
DC Rated Voltage
250V
Weight
68.04g
Compliance
RoHS
Compliant
Datasheet
Honeywell 2TL1-3D Datasheet
Download the complete datasheet for Honeywell 2TL1-3D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

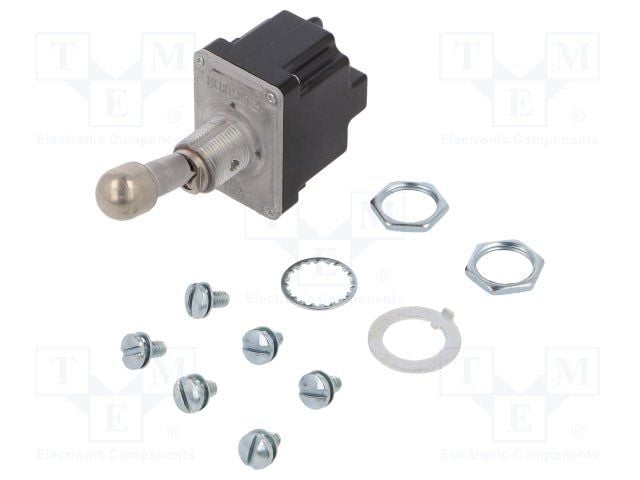

Product Images
