DPDT momentary rocker switch with screw terminals, featuring a white plastic toggle actuator. Rated for 10A at 125V AC, with a maximum current rating of 18A and maximum voltage ratings of 277V AC and 250V DC. This illuminated switch offers a panel mount design with a flush orientation and operates within a temperature range of -54°C to 71°C. Constructed with silver cadmium contacts and silver plating, it measures 55.1mm in length and 22.6mm in depth.
Current Rating10A
MountingPanel, Flush
Quick Jump:
Technical Specifications
Honeywell 2TP201-7 technical specifications.
General
Actuator Color
White
Actuator Material
Plastic
Actuator Type
Toggle
Color
Black
Contact Current Rating
10A
Contact Material
Silver, Cadmium
Contact Plating
Silver
Current Rating
10A
Depth
22.6mm
Illumination Type
Illuminated
Length
55.1mm
Max Current Rating
18A
Max Operating Temperature
71°C
Min Operating Temperature
-54°C
Max Voltage Rating (AC)
277V
Max Voltage Rating (DC)
250V
Mount
Panel, Flush
Orientation
Straight
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
TP
Switch Function
Mom-Off-Mom
Termination
Screw
Throw Configuration
DPDT
Voltage Rating (AC)
125V
Weight
63.5g
Compliance
RoHS
Compliant
Datasheet
Honeywell 2TP201-7 Datasheet
Download the complete datasheet for Honeywell 2TP201-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

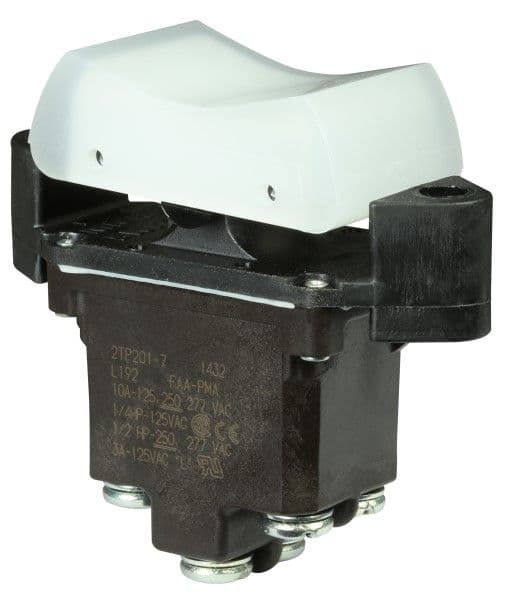

Product Images
