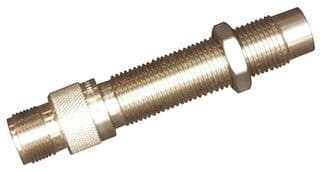

The Honeywell 3040A ferrite actuator module is a passive device with a coil resistance of 162 ohms and an inductance of 85 millihenries. It operates within a temperature range of -55°C to 120°C and is designed for threaded mounting. The module has a diameter of 159mm and a depth of 63.88mm, with a weight of 70 grams. It is compliant with RoHS regulations and is suitable for use in applications up to 40kHz.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell 3040A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Material | Ferrite |
| Package/Case | Module |
| Coil Resistance | 162R |
| Depth | 63.88mm |
| Diameter | 159mm |
| Frequency | 40kHz |
| Inductance | 85mH |
| Material | Stainless Steel |
| Max Frequency | 40kHz |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -55°C |
| Mount | Threaded |
| Output Voltage | 70V |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 3040 |
| Termination | Connector |
| Type | Passive |
| Weight | 70g |
| RoHS | Compliant |
