SPDT momentary snap acting switch with a 1A current rating at 30VDC. Features gold contacts, a stainless steel roller lever actuator with an 11mm length, and a 1.52mm pretravel. Designed for panel mounting with wire terminals, it operates within a temperature range of -53°C to 121°C and boasts a mechanical life of 10,000,000 cycles. This RoHS compliant component offers a 125V AC voltage rating and chassis, screw, or solder mounting options.
Current Rating1A
MountingChassis Mount, Screw, Solder
Quick Jump:
Technical Specifications
Honeywell 313SX30-T technical specifications.
General
| Actuator Length | 11mm |
| Actuator Material | Stainless Steel |
| Contact Material | Gold |
| Current Rating | 1A |
| Depth | 5.08mm |
| Length | 14.73mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 121°C |
| Min Operating Temperature | -53°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 10000000Cycles |
| Mount | Chassis Mount, Screw, Solder |
| Operating Position | 0.036inch |
| Orientation | Straight |
| Package Quantity | 30 |
| Packaging | Bulk |
| Pretravel | 127mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | SX |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| Weight | 136g |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 313SX30-T Datasheet
Download the complete datasheet for Honeywell 313SX30-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

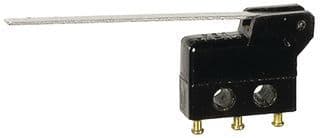

Product Images
