SPDT momentary snap action switch featuring a gold-plated gold contact material for reliable performance. Rated for 1A at 30VDC and 125VAC, this switch offers a mechanical life of 10 million cycles. It includes a straight actuator with a 117mm length and operates within a temperature range of -55°C to 125°C. Termination is via solder, and mounting options include chassis mount and screw.
Current Rating1A
MountingChassis Mount, Screw, Solder
Quick Jump:
Technical Specifications
Honeywell 313SX5-T technical specifications.
General
| Actuator Length | 117mm |
| Contact Material | Gold |
| Contact Plating | Gold |
| Current Rating | 1A |
| Depth | 5.1mm |
| Length | 24.95mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 125°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -55°C |
| Mount | Chassis Mount, Screw, Solder |
| Operating Position | 0.065inch |
| Orientation | Straight |
| Package Quantity | 30 |
| Packaging | Bulk |
| Pretravel | 267mm |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | SX |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| Weight | 136g |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 313SX5-T Datasheet
Download the complete datasheet for Honeywell 313SX5-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

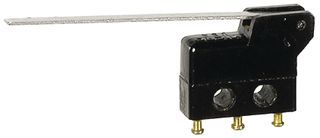

Product Images
