DPDT toggle switch with a standard round lever, featuring quick connect terminations and panel mount with threads. Rated for 18A at 277VAC and 250VDC, this non-illuminated switch offers a 3-position (ON-OFF-ON) momentary function. Constructed with silver cadmium contacts, it operates within a temperature range of -40°C to 71°C and boasts IP67, waterproof, and dust-tight ratings.
Current Rating20A
MountingBushing
Quick Jump:
Technical Specifications
Honeywell 32NT91-7 technical specifications.
General
| Actuator Length | 17.02mm |
| Actuator Type | Standard Round |
| Contact Material | Silver, Cadmium |
| Current Rating | 20A |
| Depth | 22.6mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 55.1mm |
| Max Current Rating | 18A |
| Max Operating Temperature | 71°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 277V |
| Max Voltage Rating (DC) | 250V |
| Mount | Bushing |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Orientation | Straight |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | NT |
| Switch Function | Mom-Off-Mom |
| Termination | Quick Connect |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 32NT91-7 Datasheet
Download the complete datasheet for Honeywell 32NT91-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

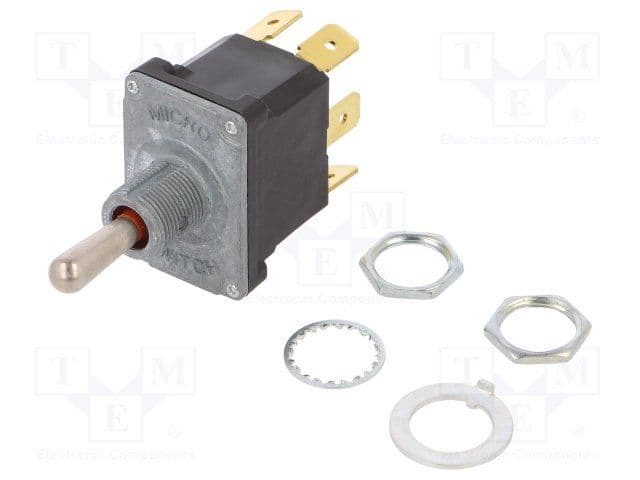

Product Images
