Technical Specifications
Honeywell 404EN1-6 technical specifications.
General
| Current Rating | 7A |
| Electrical Life | 25000Cycles |
| Max Current Rating | 7A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (DC) | 28V |
| Mechanical Life | 25000Cycles |
| Mount | Panel |
| Operating Force | 5338N |
| Orientation | Straight |
| Overtravel | 635mm |
| Package Quantity | 1 |
| Pretravel | 102mm |
| RoHS Compliant | No |
| Series | EN |
| Switch Function | On-Mom |
| Termination | Wire Leads |
| Throw Configuration | 4PDT |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Not Compliant |
Datasheet
Honeywell 404EN1-6 Datasheet
Download the complete datasheet for Honeywell 404EN1-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

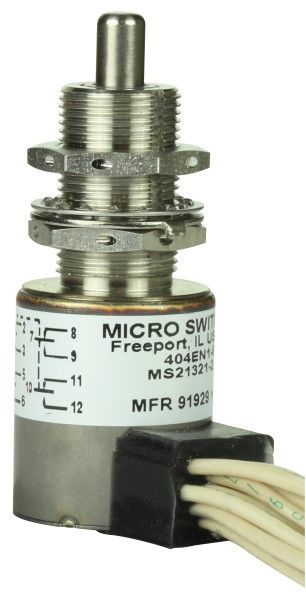

Product Images
