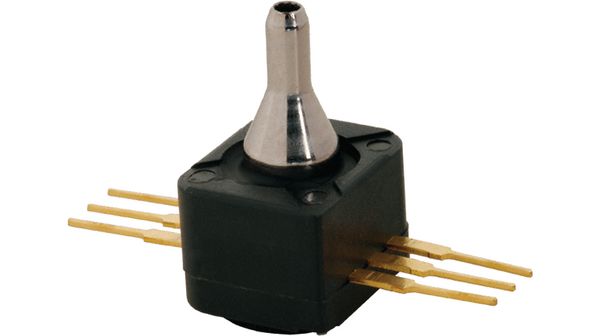

Board mount gauge pressure sensor with an operating range of 0psi to 15psi. Features analog voltage output, 1ms response time, and 4% accuracy. Operates from a 4.75V to 5V supply voltage with a maximum supply current of 10mA. Housed in a 6-pin DIP package with through-hole mounting and barbless port style. Suitable for operation between -45°C and 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell 40PC015G1A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell 40PC015G1A technical specifications.
| Accuracy | 4% |
| Package/Case | DIP |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -45°C |
| Max Pressure | 45PSI |
| Max Supply Current | 10mA |
| Max Supply Voltage | 5V |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Operating Pressure | 15PSI |
| Output | ANALOG |
| Output Type | Analog Voltage, Analog |
| Output Voltage | 4V |
| Package Quantity | 10 |
| Port Style | Barbless |
| Pressure Type | Gauge |
| Primary Type | PRESSURE SENSOR |
| Reach SVHC Compliant | No |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Series | 40PC |
| Supply Current | 10mA |
| Termination | PC Pin |
| DC Rated Voltage | 5V |
| Width | 11.2mm |
| RoHS | Compliant |
