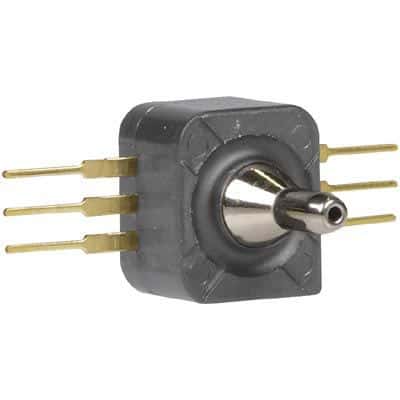

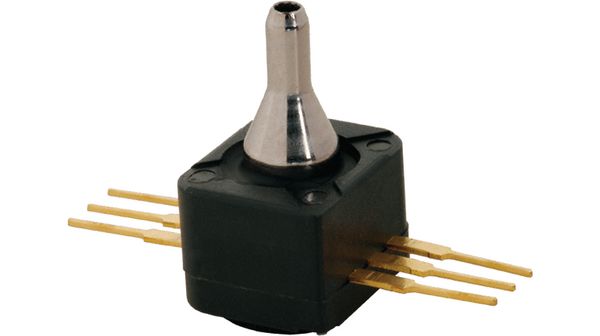

This piezoresistive pressure sensor measures gauge pressure from 0 to 150 PSI, with a maximum operating pressure of 300 PSI. It features an analog voltage output and operates within a temperature range of -45°C to 125°C. The sensor requires a supply voltage between 4.75V and 5V, drawing a maximum of 10mA. It is designed for through-hole mounting with PC pin termination and a DIP package, offering a response time of 1ms.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell 40PC150G1A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell 40PC150G1A technical specifications.
| Accuracy | 2.5% |
| Package/Case | DIP |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -45°C |
| Max Pressure | 300PSI |
| Max Supply Current | 10mA |
| Max Supply Voltage | 5V |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Operating Pressure | 150PSI |
| Output | ANALOG |
| Output Type | Analog Voltage, Analog, Voltage |
| Output Voltage | 4V |
| Package Quantity | 10 |
| Port Style | Barbless |
| Pressure Type | Gauge |
| Primary Type | PRESSURE SENSOR |
| Reach SVHC Compliant | No |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Series | 40PC |
| Supply Current | 10mA |
| Termination | PC Pin |
| DC Rated Voltage | 5V |
| Width | 11.2mm |
| RoHS | Compliant |
