4PDT momentary toggle switch with screw terminals, rated for 18A at 28VDC and 10A/125VAC. Features a nickel-plated standard round actuator with a 17.27mm length. Operates within a temperature range of -65°C to 71°C, with Silver, Cadmium, and Gold contact materials. Panel mountable via a threaded bushing, this RoHS compliant switch is also UL, CSA, and CE approved, offering environment-proof protection.
Current Rating10A
MountingBushing
Quick Jump:
Technical Specifications
Honeywell 4TL1-8 technical specifications.
General
| Actuator Length | 17.27mm |
| Actuator Material | NICKEL PLATED |
| Actuator Type | Standard Round |
| Approvals | UL, CSA, CE |
| Contact Current Rating | 18A |
| Contact Material | Silver, Cadmium, Gold |
| Contact Plating | Silver, Cadmium |
| Current Rating | 10A |
| Illumination Type | Non-Illuminated, Illuminated |
| Max Operating Temperature | 71°C |
| Min Operating Temperature | -65°C |
| Max Voltage Rating (DC) | 250V |
| Mount | Bushing |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | Environment Proof |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | TL |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | 4PDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 4TL1-8 Datasheet
Download the complete datasheet for Honeywell 4TL1-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

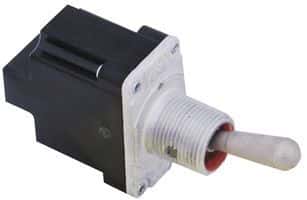

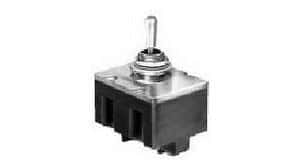

Product Images
