Honeywell
4TL49-12A
Switch Toggle ON ON ON DP3T Locking Lever Screw 20A 277VAC 250VDC 745.7VA Panel Mount with Threads
Current Rating15A
MountingBushing
Quick Jump:
Technical Specifications
Honeywell 4TL49-12A technical specifications.
General
Actuator Length
26.67mm
Actuator Type
LOCKING LEVER
Contact Material
Silver, Cadmium
Current Rating
15A
Illumination Type
Non-Illuminated, Illuminated
Max Operating Temperature
71°C
Min Operating Temperature
-65°C
Max Voltage Rating (AC)
277V
Max Voltage Rating (DC)
250V
Mount
Bushing
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Ratings
Environment Proof
RoHS Compliant
Yes
Series
TL
Switch Function
On-On-On
Termination
Screw
Throw Configuration
4PDT
Voltage Rating (AC)
125V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Honeywell 4TL49-12A Datasheet
Download the complete datasheet for Honeywell 4TL49-12A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

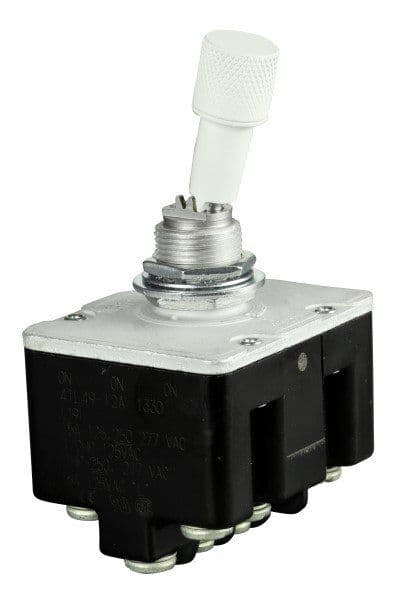

Product Images
