Technical Specifications
Honeywell 8LS152 technical specifications.
General
| Current Rating | 10A |
| Max Current Rating | 10A |
| Max Operating Temperature | 71°C |
| Min Operating Temperature | -29°C |
| Max Voltage Rating (DC) | 550V |
| Mount | Chassis Mount, Screw |
| Operating Force | 139N |
| Operating Position | 2858mm |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pretravel | 286mm |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | LS |
| Switch Function | On-Mom |
| Termination | Conduit |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 120V |
| DC Rated Voltage | 115V |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 8LS152 Datasheet
Download the complete datasheet for Honeywell 8LS152 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

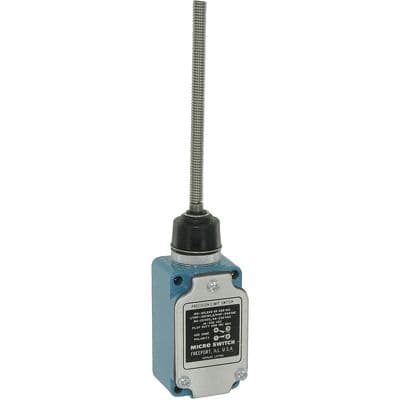

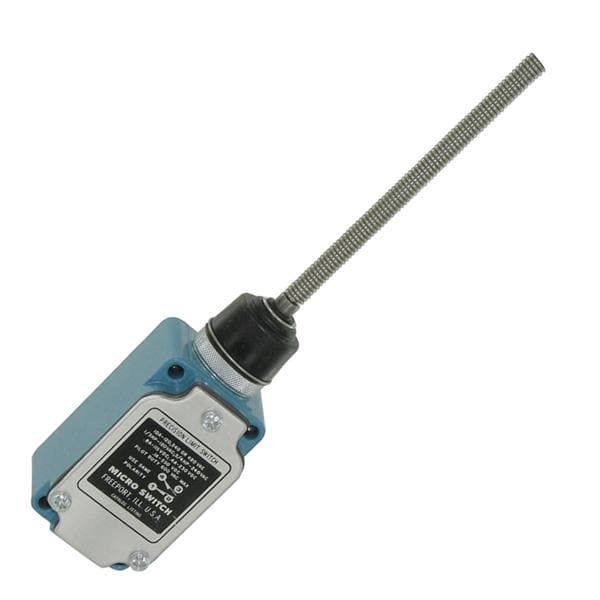

Product Images
