SPDT limit switch featuring snap-action contacts, a top plunger actuator, and screw mounting. Rated for 5A at 250VAC, 1/10HP at 240VAC, and 28VDC, with a mechanical life of 10 million cycles. Operates within a temperature range of 0°C to 105°C and boasts IP66, water-resistant, and dust-tight ratings. Includes linear cable termination and is RoHS compliant.
Current Rating5A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell 914CE1-6A technical specifications.
General
Actuator Type
PLUNGER
Approvals
UL, CSA, CE
Contact Type
Snap Action
Current Rating
5A
Depth
16mm
Height
54mm
Length
40.01mm
Max Operating Temperature
105°C
Min Operating Temperature
0°C
Max Voltage Rating (AC)
250V
Mechanical Life
10000000Cycles
Mount
Chassis Mount, Screw
Operating Force
118N
Orientation
Straight
Overtravel
30mm
Pretravel
0.02inch
Ratings
IP66, Water Resistant, Dust Tight
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
914CE
Switch Function
On-Mom
Termination
Cable
Throw Configuration
SPDT
Voltage Rating (AC)
240V
DC Rated Voltage
28V
Width
16mm
Compliance
RoHS
Compliant
Datasheet
Honeywell 914CE1-6A Datasheet
Download the complete datasheet for Honeywell 914CE1-6A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

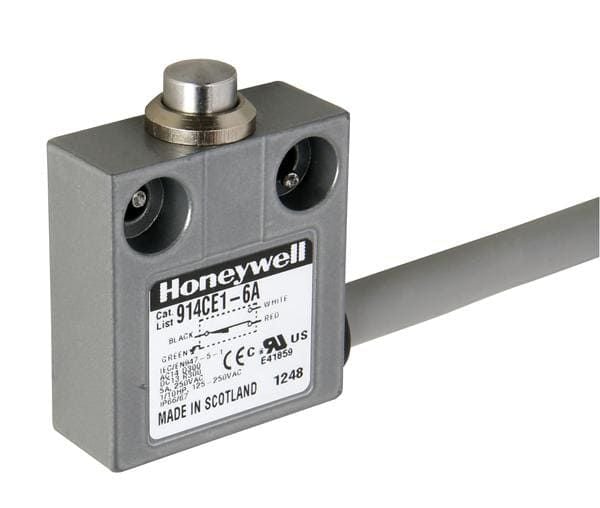

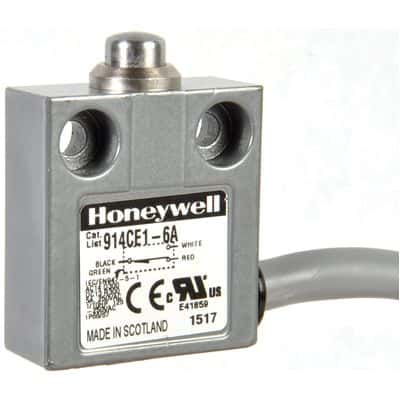

Product Images
