SPDT snap-action limit switch with a side rotary actuator and screw mounting. Features a 5A at 250VAC current rating, 1/10HP rating, and 13.34N operating force. Designed for chassis mounting with a right-angle orientation and connector termination. Offers a mechanical life of 10,000,000 cycles and IP66, water-resistant, and dust-tight ratings. Operating temperature range is 0°C to 105°C.
Current Rating5A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell 914CE16-Q technical specifications.
General
| Actuator Type | Rotary |
| Contact Type | Snap Action |
| Current Rating | 5A |
| Depth | 16mm |
| Height | 64.8mm |
| Length | 40.01mm |
| Max Operating Temperature | 105°C |
| Max Voltage Rating (AC) | 250V |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | 0°C |
| Mount | Chassis Mount, Screw |
| Operating Force | 13.34N |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP66, Water Resistant, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 914CE |
| Switch Function | On-Mom |
| Termination | Connector |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 28V |
| Width | 16mm |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 914CE16-Q Datasheet
Download the complete datasheet for Honeywell 914CE16-Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

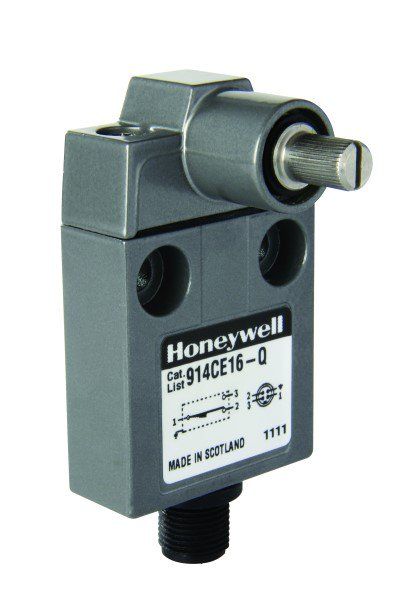

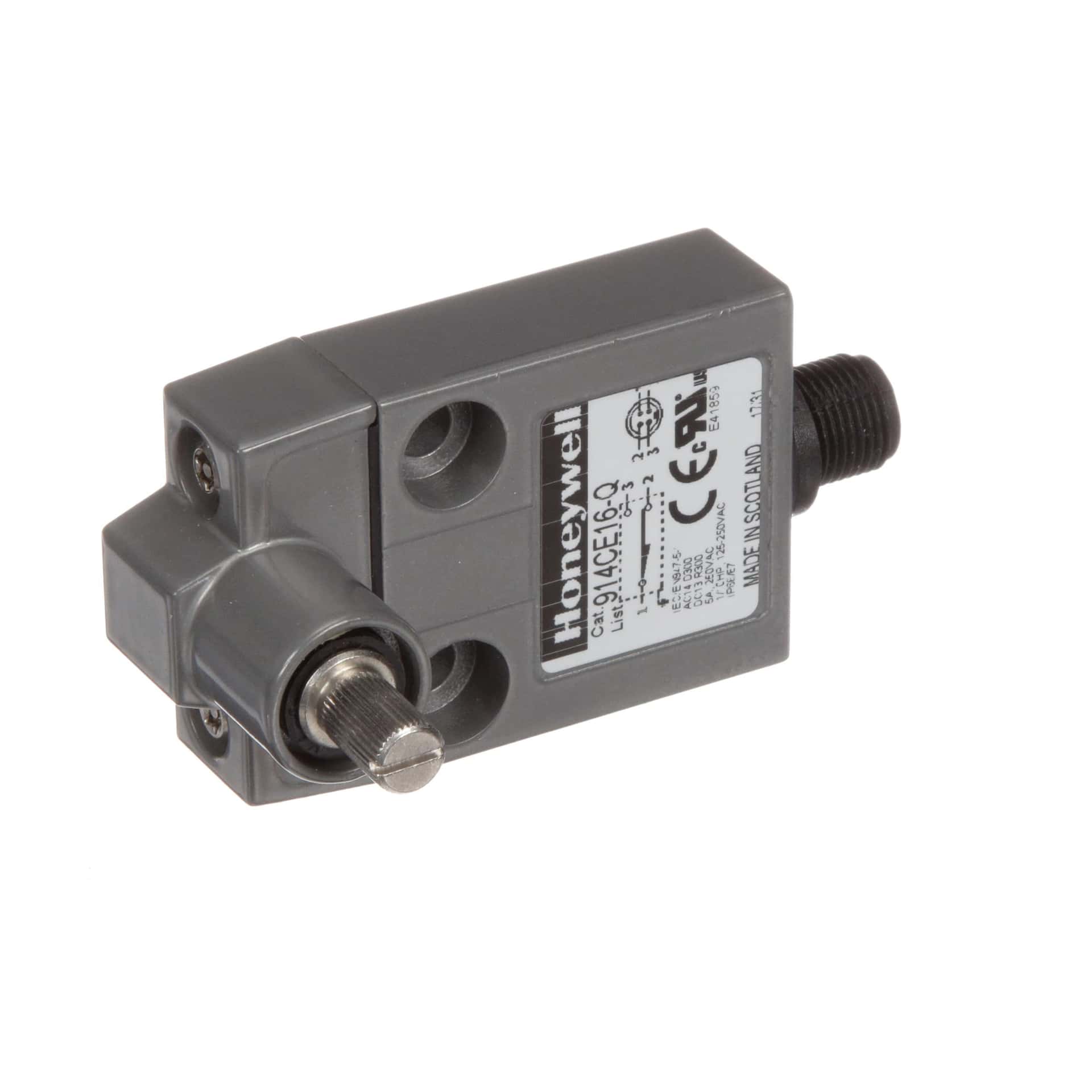

Product Images
