SPDT snap-action limit switch featuring an adjustable top plunger actuator. Rated for 5A at 250VAC and 28VDC, with a 1/10HP rating. Offers a mechanical life of 10 million cycles and operates within a temperature range of 0°C to 105°C. IP66 rated for water and dust resistance, with screw mounting and cable lead termination.
Current Rating5A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell 914CE19-3 technical specifications.
General
| Actuator Type | PLUNGER |
| Contact Plating | Silver |
| Contact Type | Snap Action |
| Current Rating | 5A |
| Depth | 16mm |
| Height | 75.36mm |
| Length | 40mm |
| Max Operating Temperature | 105°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | 0°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Screw |
| Operating Force | 1200gf |
| Orientation | Straight |
| Packaging | Bulk |
| Ratings | IP66, Water Resistant, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 914CE |
| Switch Function | On-Mom |
| Termination | Cable Leads |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 240V |
| DC Rated Voltage | 28V |
| Width | 16mm |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 914CE19-3 Datasheet
Download the complete datasheet for Honeywell 914CE19-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

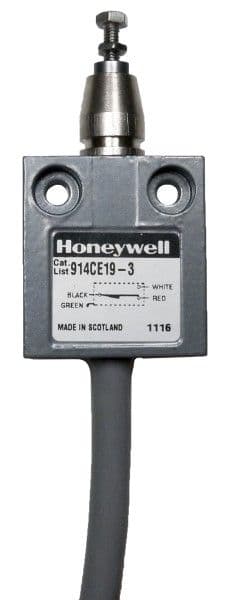

Product Images
