SPDT snap-action limit switch featuring a top roller plunger actuator. Rated for 5A at 250VAC and 28VDC, with a mechanical life of 10 million cycles. Offers IP66 and IP68 ratings for water and dust resistance. Chassis mountable via screw or brackets, with a linear connector termination. Operating force is 118N, with 30mm overtravel and 0.02-inch pretravel. Silver contact plating and lead-free construction.
Current Rating5A
MountingChassis Mount, Screw, Brackets
Quick Jump:
Technical Specifications
Honeywell 914CE2-Q technical specifications.
General
Actuator Type
TOP ROLLER PLUNGER
Approvals
UL, CSA, IEC, CE
Contact Plating
Silver
Contact Type
Snap Action
Current Rating
5A
Depth
16mm
Height
67.01mm
Lead Free
Lead Free
Length
40.01mm
Max Operating Temperature
105°C
Max Voltage Rating (AC)
250V
Mechanical Life
10000000Cycles
Min Operating Temperature
0°C
Mount
Chassis Mount, Screw, Brackets
Number of Poles
1
Number of Positions
2
Operating Force
118N
Orientation
Straight
Overtravel
30mm
Packaging
Bulk
Pretravel
0.02inch
Ratings
IP66, Water Resistant, Dust Tight, IP68
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
914CE
Switch Function
On-Mom
Termination
Connector
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
28V
Width
16mm
Compliance
RoHS
Compliant
Datasheet
Honeywell 914CE2-Q Datasheet
Download the complete datasheet for Honeywell 914CE2-Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

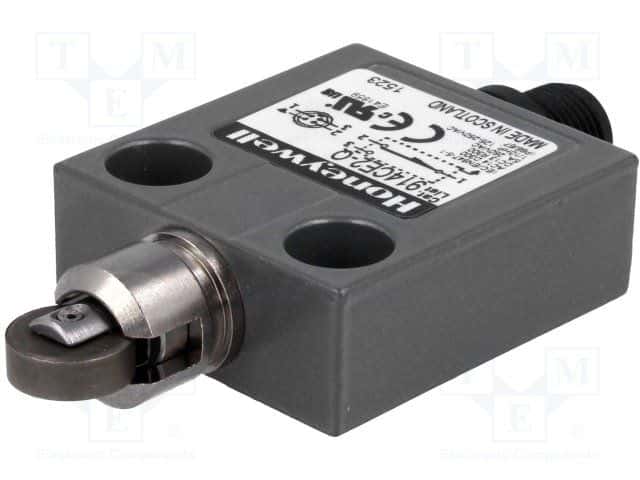

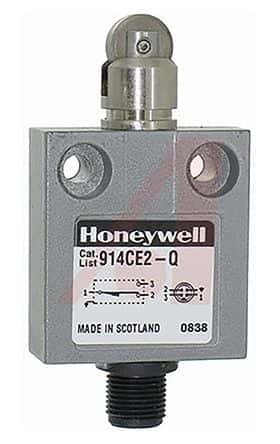

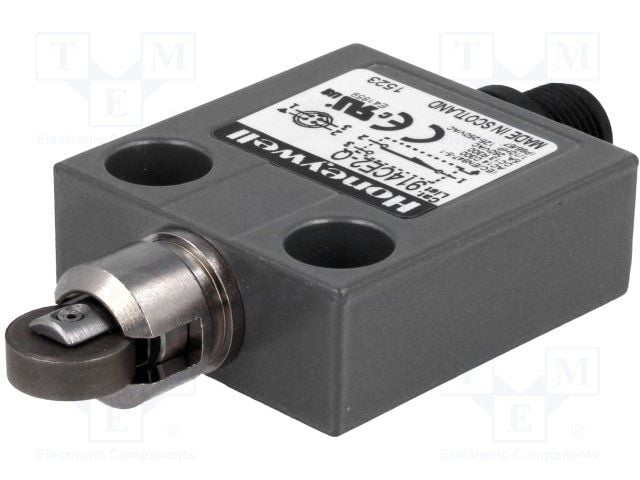

Product Images
