Snap acting/limit switch featuring a plunger actuator and SPDT throw configuration. Rated for 10A at 250V AC, this switch offers 2 contacts and 1 pole with 2 positions. Designed for chassis or panel mounting with screw termination, it boasts IP66, water-resistant, and dust-tight ratings. Mechanical life extends to 10,000,000 cycles, operating between 0°C and 70°C.
Package200
Current Rating10A
MountingChassis Mount, Panel, Screw
Quick Jump:
Technical Specifications
Honeywell 924CE1-S3 technical specifications.
General
| Actuator Type | PLUNGER |
| Package/Case | 200 |
| Current Rating | 10A |
| Depth | 16mm |
| Height | 59.06mm |
| Length | 40.01mm |
| Max Operating Temperature | 70°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | 0°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Panel, Screw |
| Number of Contacts | 2 |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 2300gf |
| Orientation | Straight |
| Packaging | Bulk |
| Ratings | IP66, Water Resistant, Dust Tight |
| RoHS Compliant | Yes |
| Series | 924CE |
| Switch Function | On-Mom |
| Termination | Cable |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| Width | 49mm |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 924CE1-S3 Datasheet
Download the complete datasheet for Honeywell 924CE1-S3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

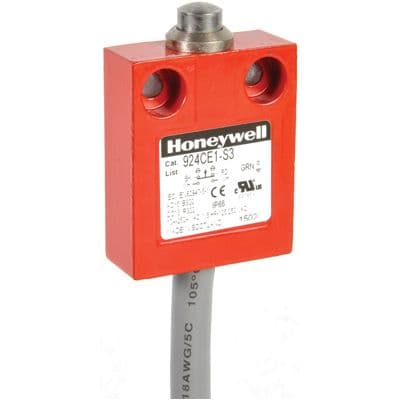

Product Images
