SPDT snap-action switch with a 10A, 250VAC rating. Features a plunger actuator, cable lead termination, and chassis mount with screw fastening. Rated IP66 for water resistance and dust tightness, operating between 0°C and 70°C with a mechanical life of 10 million cycles. Dimensions include a 40.01mm length, 49mm width, and 59.06mm height.
Current Rating10A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell 924CE1-S9 technical specifications.
General
| Actuator Type | PLUNGER |
| Current Rating | 10A |
| Depth | 16mm |
| Height | 59.06mm |
| Length | 40.01mm |
| Max Operating Temperature | 70°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | 0°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Screw |
| Number of Contacts | 2 |
| Operating Force | 0.5N |
| Operating Position | 0.689inch |
| Orientation | Straight |
| Overtravel | 0.039inch |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pretravel | 0.087inch |
| Ratings | IP66, Water Resistant, Dust Tight |
| Series | 924CE |
| Switch Function | On-Mom |
| Termination | Cable Leads |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| Width | 49mm |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 924CE1-S9 Datasheet
Download the complete datasheet for Honeywell 924CE1-S9 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

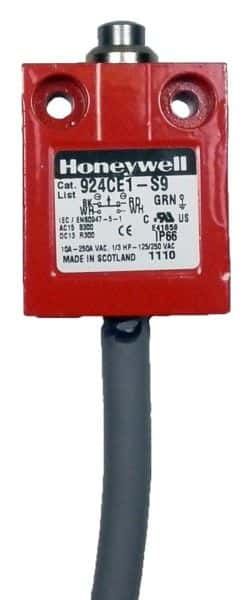

Product Images
