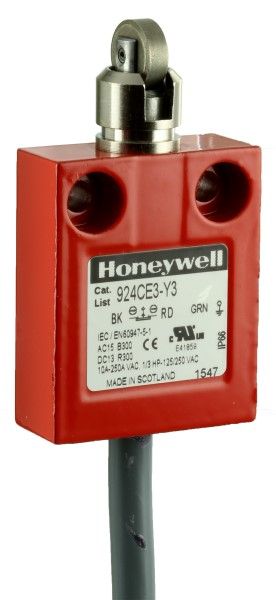

The 924CE Series Chassis Mount Limit Switch is a basic and snap action switch designed for use in harsh environments. It features a maximum operating temperature of 70°C and a minimum operating temperature of 0°C. The switch has a mechanical life of 10000000 cycles and is rated for 250V AC. It is packaged in bulk and has a screw mount configuration. The switch is rated for IP66, is water resistant, and dust tight.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell 924CE3-Y3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell 924CE3-Y3 technical specifications.
| Depth | 16mm |
| Height | 72.01mm |
| Length | 40.01mm |
| Max Operating Temperature | 70°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | 0°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Screw |
| Operating Force | 2300gf |
| Orientation | Straight |
| Packaging | Bulk |
| Ratings | IP66, Water Resistant, Dust Tight |
| Series | 924CE |
| Switch Function | On-Mom |
| Termination | Cable Leads |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 250V |
| RoHS | Compliant |
Download the complete datasheet for Honeywell 924CE3-Y3 to view detailed technical specifications.
