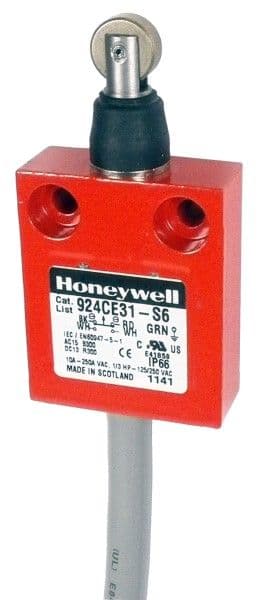

SPDT snap action switch with a 10A current rating and 250V AC/DC voltage rating. Features silver contacts, a straight orientation, and cable termination. Designed for chassis mounting with screw fasteners, this switch offers a mechanical life of 10 million cycles and operates within a temperature range of 0°C to 105°C. It boasts IP67 and IP66 ratings for waterproof and dust-tight protection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell 924CE31-S6 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell 924CE31-S6 technical specifications.
| Approvals | UL, CSA, CE |
| Contact Material | Silver |
| Current Rating | 10A |
| Depth | 16mm |
| Length | 40mm |
| Max Operating Temperature | 105°C |
| Max Voltage Rating (AC) | 240V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | 0°C |
| Mount | Chassis Mount, Screw |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Operating Force | 2600gf |
| Operating Position | 1.421inch |
| Orientation | Straight |
| Overtravel | 0.039inch |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pretravel | 0.087inch |
| Ratings | IP67, Waterproof, Dust Tight, IP66 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 924CE |
| Switch Function | On-Mom |
| Termination | Cable |
| Throw Configuration | SPDT, DPST |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Width | 49mm |
| RoHS | Compliant |
