Illuminated pushbutton switch featuring a Single Pole Double Throw (SPDT) configuration with an alternate action (On-On) function. Rated for 2A at 24VDC and 125VAC, with silver contacts and silver plating for reliable performance. Offers both quick connect and solder terminal options for versatile integration, designed for panel mounting with a snap-in mechanism. Boasts a mechanical and electrical life of 25,000 cycles, with a black housing and straight orientation. This RoHS compliant component meets UL and CSA approvals.
Current Rating3A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
Honeywell AML21BBA2AB technical specifications.
General
Approvals
UL, CSA
Color
Black
Contact Current Rating
2A
Contact Material
Silver
Contact Plating
Silver
Current Rating
3A
Electrical Life
25000Cycles
Height
35.6mm
Length
20.3mm
Mechanical Life
25000Cycles
Mount
Panel, Snap in
Number of Poles
1
Number of Positions
2
Orientation
Straight
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AML21
Switch Function
On-On
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
24V
Width
20.3mm
Compliance
RoHS
Compliant
Datasheet
Honeywell AML21BBA2AB Datasheet
Download the complete datasheet for Honeywell AML21BBA2AB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

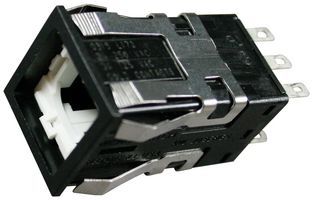

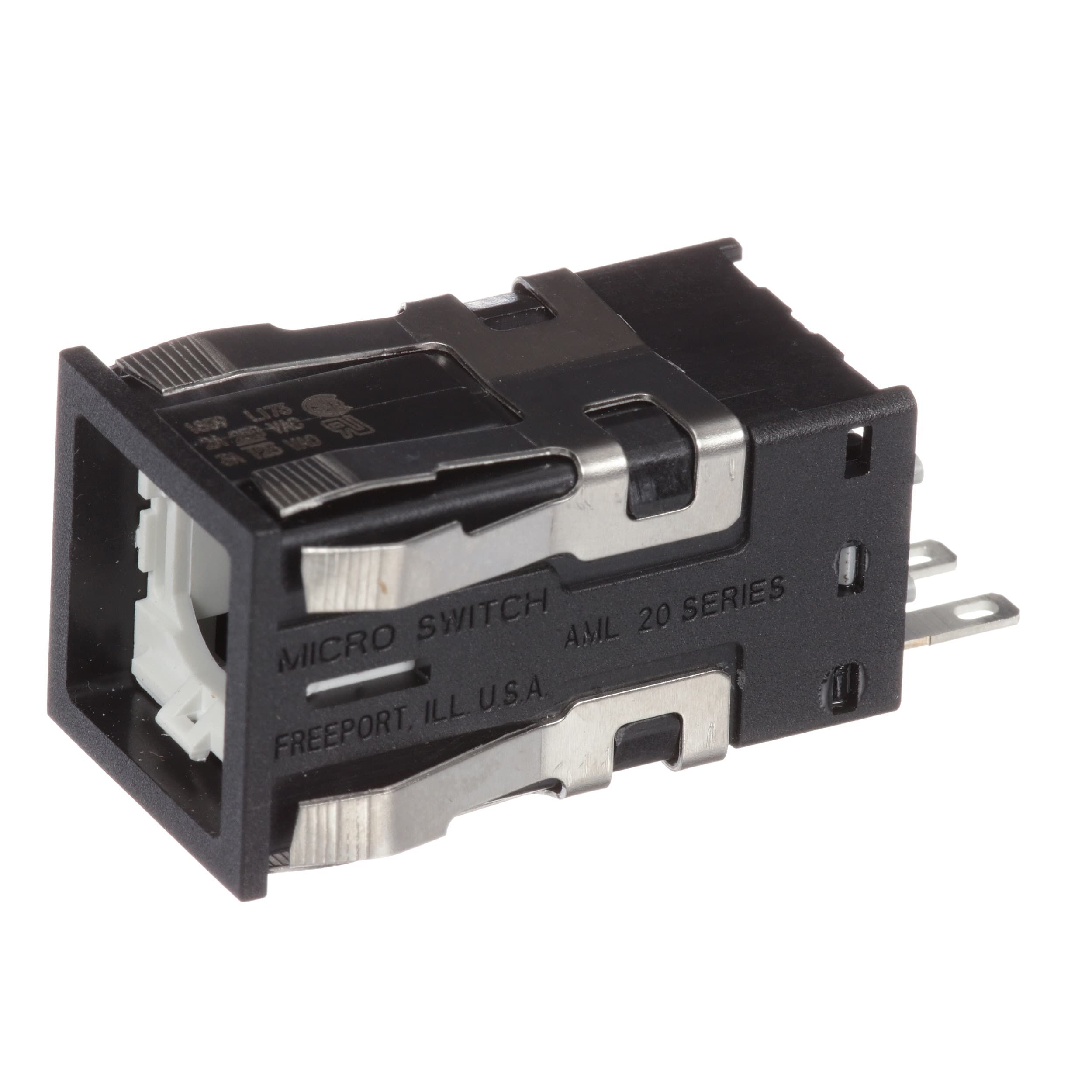

Product Images
