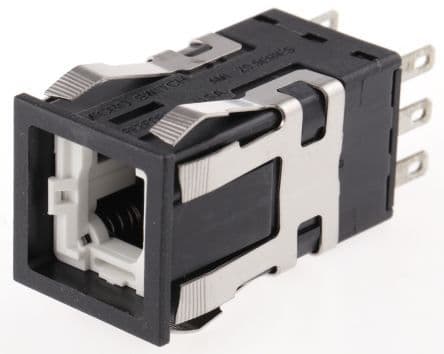

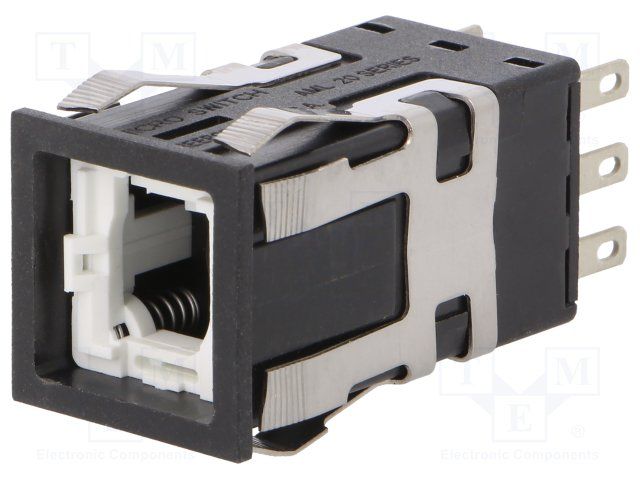

This 2-pole 2-position on-moment switch has a contact current rating of 2A and a current rating of 3A. It is rated for 125V AC and 24V DC and features silver and gold contacts. The switch is designed for panel mount with a snap-in installation and has a mechanical life of 100,000 cycles. It is compliant with RoHS regulations and UL and CSA approvals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell AML21BBA2AC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell AML21BBA2AC technical specifications.
| Approvals | UL, CSA |
| Contact Current Rating | 2A |
| Contact Material | Silver, Gold |
| Current Rating | 3A |
| Electrical Life | 100000Cycles |
| Mechanical Life | 100000Cycles |
| Mount | Panel, Snap in |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | AML21 |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 24V |
| RoHS | Compliant |
