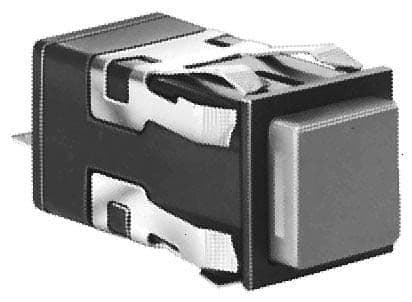

This 2-position, 2-pole on-moment panel mount switch is rated for 24V DC and 125V AC with a current rating of 3A. It features a silver contact material with silver plating and a mechanical life of 25,000 cycles. The switch is approved by UL and CSA and is compliant with RoHS regulations. It is available in a bulk packaging option with a panel mount and snap-in mount configuration.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell AML21CBA2AC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell AML21CBA2AC technical specifications.
| Approvals | UL, CSA |
| Color | Black |
| Contact Current Rating | 2A |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 3A |
| Electrical Life | 25000Cycles |
| Illumination Color | Multiple |
| Lead Free | Lead Free |
| Mechanical Life | 25000Cycles |
| Mount | Panel, Snap in |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | AML21 |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 24V |
| RoHS | Compliant |
Download the complete datasheet for Honeywell AML21CBA2AC to view detailed technical specifications.
