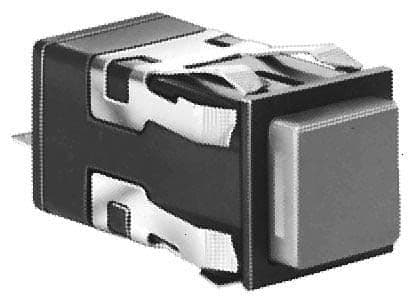

This AML21 series switch from Honeywell features a contact current rating of 2A and a current rating of 3A. It has a mechanical life of 25000 cycles and an electrical life of 25000 cycles. The switch is RoHS compliant and has approvals from UL and CSA. It is available in a panel mount configuration with a silver contact material and silver plating. The switch is rated for a DC voltage of 24V and an AC voltage of 125V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell AML21CBA3AC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell AML21CBA3AC technical specifications.
| Approvals | UL, CSA |
| Contact Current Rating | 2A |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 3A |
| Electrical Life | 25000Cycles |
| Lead Free | Lead Free |
| Mechanical Life | 25000Cycles |
| Mount | Panel, Snap in |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | AML21 |
| Switch Function | On-Mom |
| Termination | PC Pins |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 24V |
| RoHS | Compliant |
