Honeywell
AML21EBA2AA
Switch Push Button N.O./N.C. SPDT Rectangular Button Momentary Contact Panel Mount Quick Connect/Solder
Current Rating3A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
Honeywell AML21EBA2AA technical specifications.
General
Approvals
UL, CSA
Contact Current Rating
2A
Contact Material
Silver
Current Rating
3A
Electrical Life
25000Cycles
Lead Free
Lead Free
Mechanical Life
25000Cycles
Mount
Panel, Snap in
Number of Poles
1
Number of Positions
2
Orientation
Straight
Package Quantity
25
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AML21
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
24V
Compliance
RoHS
Compliant
Datasheet
Honeywell AML21EBA2AA Datasheet
Download the complete datasheet for Honeywell AML21EBA2AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

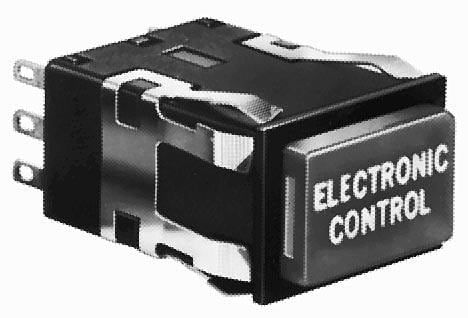

Product Images
