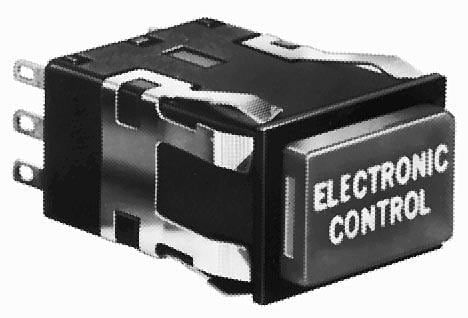

The AML21GBE2AD is a DPDT pushbutton switch with a silver contact material, rated for 2A contact current and 3A current. It has an electrical life of 25,000 cycles and a mechanical life of 25,000 cycles. The switch is available in bulk packaging and is suitable for panel mounting with a snap-in design. It is compliant with RoHS regulations and has a voltage rating of 125V AC and 24V DC.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell AML21GBE2AD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell AML21GBE2AD technical specifications.
| Contact Current Rating | 2A |
| Contact Material | Silver |
| Current Rating | 3A |
| Electrical Life | 25000Cycles |
| Illumination Color | Multiple |
| Illumination Type | Lamp |
| Mechanical Life | 25000Cycles |
| Mount | Panel, Snap in |
| Orientation | Straight |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | AML21 |
| Switch Function | On-On |
| Termination | Solder |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 24V |
| RoHS | Compliant |
Download the complete datasheet for Honeywell AML21GBE2AD to view detailed technical specifications.
