Honeywell
AML21MBC3AD
Switch Push Button N.O./N.C. DPDT Rectangular Button Alternate Contact Through Hole/Panel Mount PC Pins/Push-On
Current Rating2A
MountingPanel, Snap in, Through Hole
Quick Jump:
Technical Specifications
Honeywell AML21MBC3AD technical specifications.
General
Contact Material
Silver
Current Rating
2A
Electrical Life
25000Cycles
Illumination Type
Lamp
Mechanical Life
25000Cycles
Mount
Panel, Snap in, Through Hole
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Series
AML21
Switch Function
On-On
Termination
PC Pins
Throw Configuration
DPDT
Voltage Rating (AC)
125V
DC Rated Voltage
24V
Compliance
RoHS
Compliant
Datasheet
Honeywell AML21MBC3AD Datasheet
Download the complete datasheet for Honeywell AML21MBC3AD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

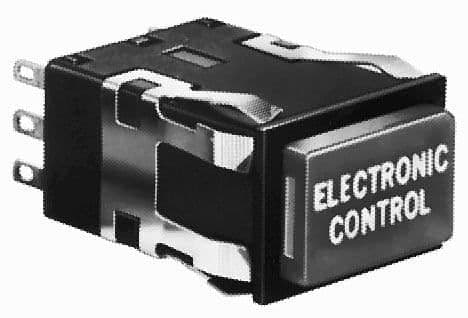

Product Images
