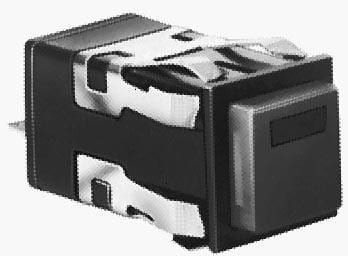

The AML22CBS3AA is a 24V rated, 2A current, SPDT on-mom pushbutton switch with a silver contact material. It features a panel mount design with snap-in and through-hole mounting options. The switch has a mechanical life of 100,000 cycles and an electrical life of 100,000 cycles. It is available in a bulk packaging configuration with a single unit per package.
Checking distributor stock and pricing after the page loads.
Honeywell AML22CBS3AA technical specifications.
| Contact Material | Silver |
| Current Rating | 2A |
| Electrical Life | 100000Cycles |
| Illumination Color | Green |
| Illumination Type | LED |
| Mechanical Life | 100000Cycles |
| Mount | Panel, Snap in, Through Hole |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Series | AML22 |
| Switch Function | On-Mom |
| Termination | PC Pins |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 24V |
| RoHS | Compliant |
