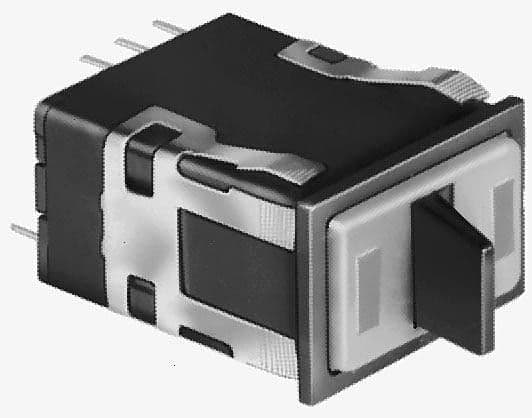

This toggle switch features a silver contact with gold and silver plating, and a paddle actuator with a black finish. It has a current rating of 2A and a voltage rating of 24V DC. The switch is designed for on-on functionality and has a quick connect termination. It is available in a bulk packaging configuration and has a panel mount design with a snap-in installation.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell AML25FBB2AA01RX datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Color | Black |
| Actuator Type | Paddle |
| Contact Material | Silver |
| Contact Plating | Gold, Silver |
| Current Rating | 2A |
| Electrical Life | 25000Cycles |
| Illumination Color | Red |
| Illumination Type | Illuminated, LED |
| Mount | Panel, Snap in |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Series | AML25 |
| Switch Function | On-On |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 24V |
| RoHS | Compliant |
Download the complete datasheet for Honeywell AML25FBB2AA01RX to view detailed technical specifications.
