Illuminated pushbutton switch featuring a DPST momentary contact configuration. Offers a 10A max current rating at 250VAC and 30VDC, with a 3A current rating. Panel mountable with snap-in capability, it includes quick connect and solder termination options. This switch boasts a mechanical and electrical life of 25,000 cycles and is UL and CSA approved, RoHS compliant, and lead-free.
Current Rating3A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
Honeywell AML31EBA4AC technical specifications.
General
Approvals
UL, CSA
Color
Black
Contact Current Rating
10A
Current Rating
3A
Depth
20.3mm
Electrical Life
25000Cycles
Lead Free
Lead Free
Length
30.5mm
Max Current Rating
10A
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
30V
Mechanical Life
25000Cycles
Mount
Panel, Snap in
Number of Poles
2
Number of Positions
1
Orientation
Straight
Packaging
Bulk
RoHS Compliant
Yes
Series
AML31
Switch Function
Off-Mom
Termination
Solder
Throw Configuration
DPST
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Honeywell AML31EBA4AC Datasheet
Download the complete datasheet for Honeywell AML31EBA4AC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

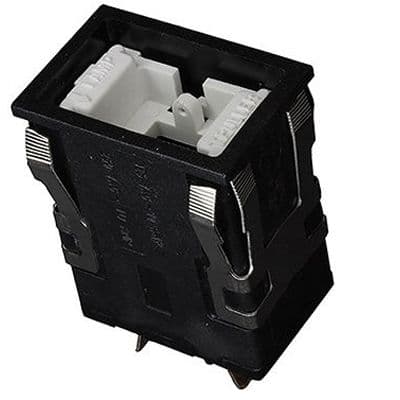

Product Images
