Illuminated pushbutton switch featuring DPST momentary action and a 10A maximum current rating at 30VDC. This panel-mount switch offers quick connect and solder termination options, with a 2A contact current rating and a 125V AC voltage rating. It boasts both electrical and mechanical lifespans of 25,000 cycles and supports multiple LED illumination colors. Approvals include UL and CSA, with lead-free and RoHS compliance.
Current Rating3A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
Honeywell AML31FBA4AC technical specifications.
General
| Approvals | UL, CSA |
| Color | Black |
| Contact Current Rating | 2A |
| Current Rating | 3A |
| Depth | 20.3mm |
| Electrical Life | 25000Cycles |
| Illumination Color | Multiple |
| Illumination Type | LED |
| Lead Free | Lead Free |
| Length | 30.5mm |
| Max Current Rating | 10A |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 25000Cycles |
| Mount | Panel, Snap in |
| Number of Poles | 2 |
| Number of Positions | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | AML31 |
| Switch Function | Off-Mom |
| Termination | Solder |
| Throw Configuration | DPST |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| Width | 28.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell AML31FBA4AC Datasheet
Download the complete datasheet for Honeywell AML31FBA4AC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

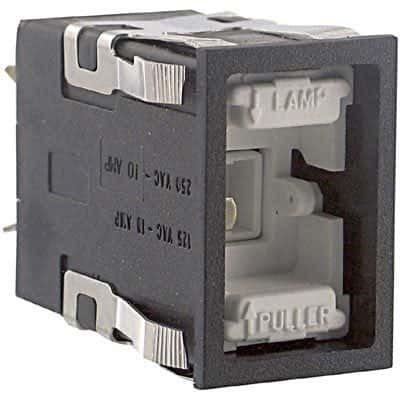

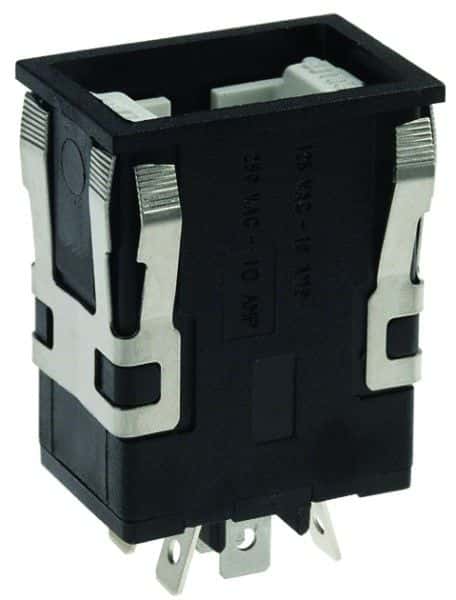

Product Images
